SPECIFICATIONS

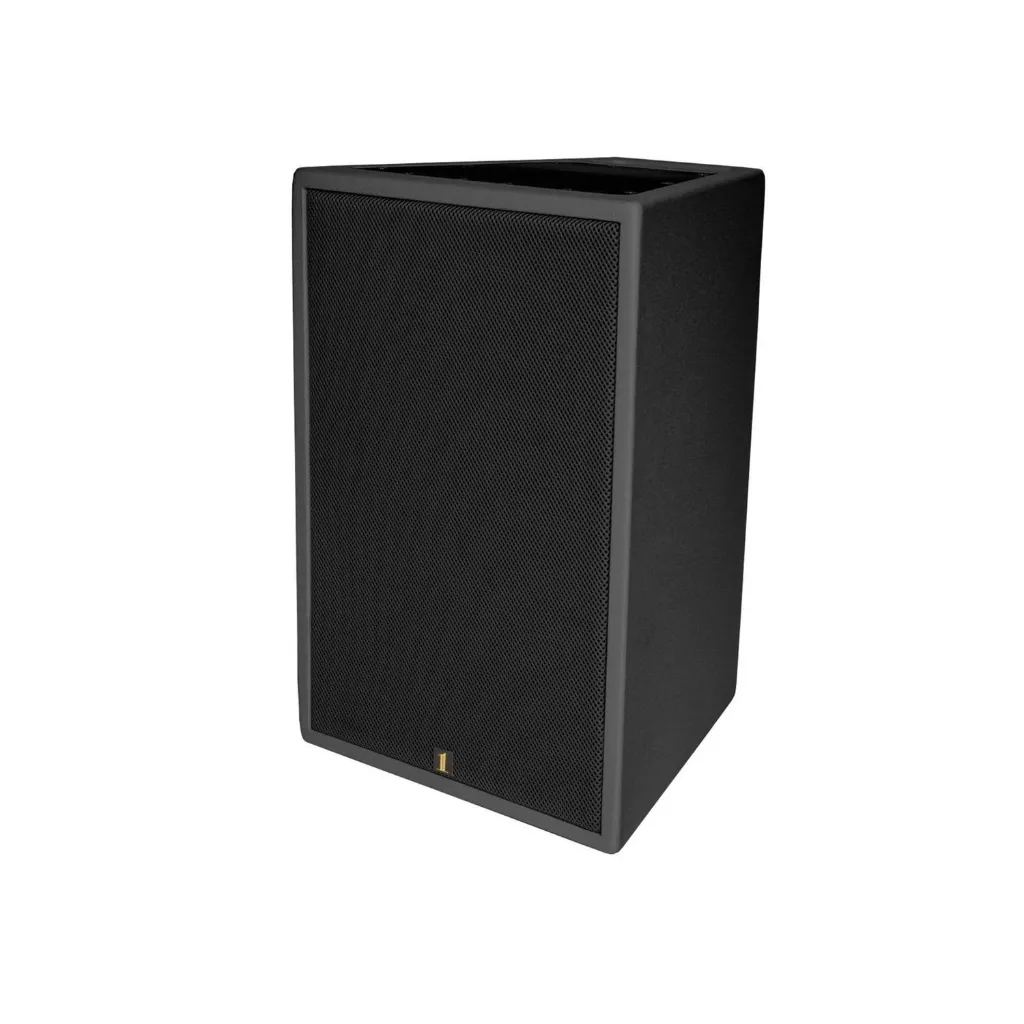

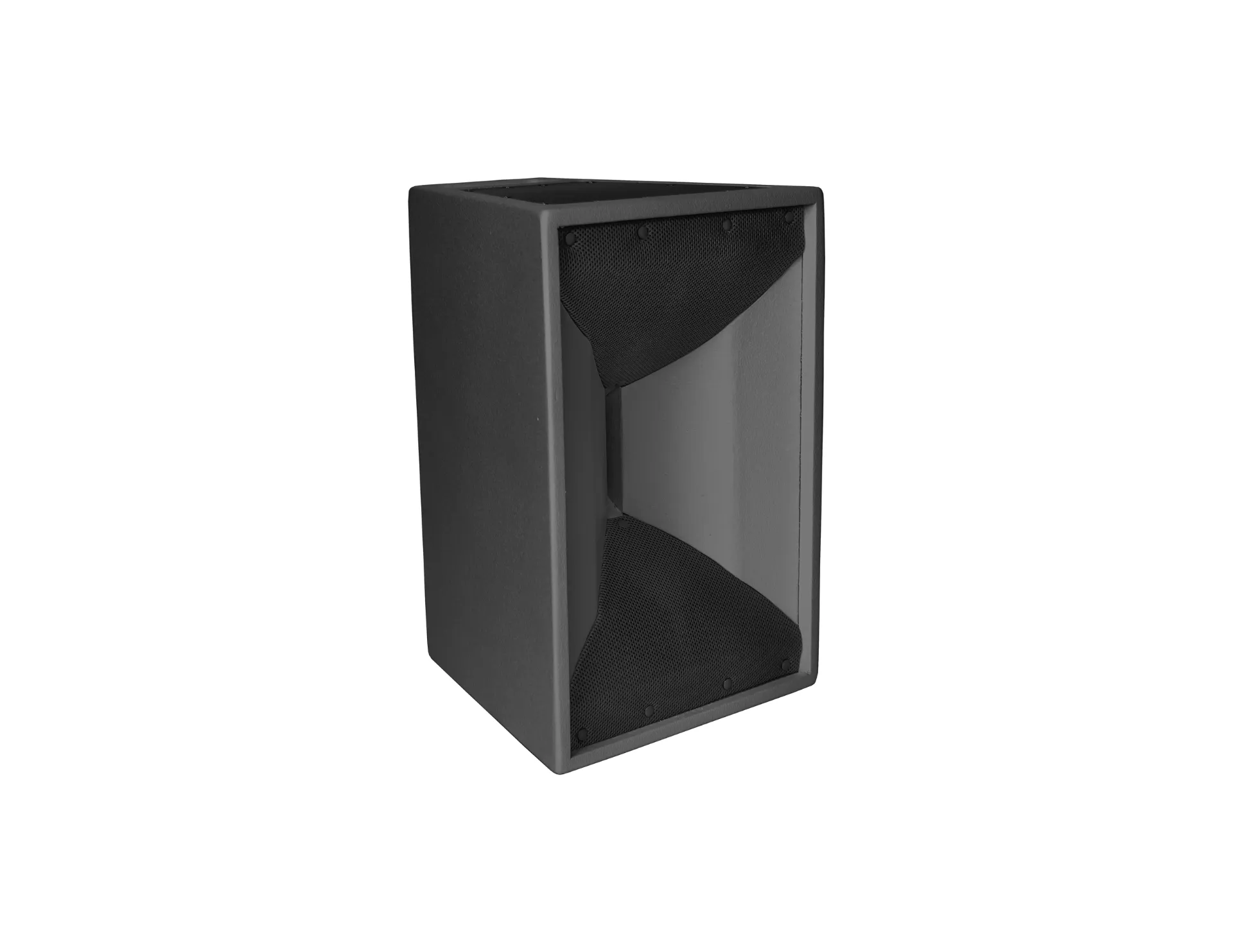

Description: passive, compact, 3-way loudspeaker, lightweight horn-loaded point source
Bandwidth: 70 Hz - 18 kHz (-6 dB preset dependent)
Max SPL: 140 dB @ 1m with preset
Power: 1780 watts (program)
Directivity: 100° x 50°
Elements: (2) 8” low frequency drivers, (1) 4” mid-high coaxial with a 2.5” compression driver
Impedance: 8Ω
Connectors: (2) NL4
IP Rating: IP55 indoor/outdoor and saltwater resistant
Rigging: (8) M5 points, (4) M6 points
Weight: 44 lbs / 20 kg
Construction: Finland birch plywood (phenolic resin), three coats of polyurea, matte salt and UV-resistant coating, A4 (316) stainless steel and powder-coated steel hardware, 3D spacer mesh fabric
Accessories: CT28 Fly Bar, CT28 Yoke, CT28 Horizontal Mounting Bracket, CT28 Angle Bar, CT28 Wall Bracket, CT28 Rigging System, Tube Mount, Active Speaker Stand and Tubes, removable magnetic front grille [included]
Dimensions: 13.6” (345 mm)W x 20” (510 mm)H x 13.6” (345 mm)D
Colors: stocking black and white, custom colors and fabrics available
